MF RB F FIXED CHAMBER

High output and cost effective

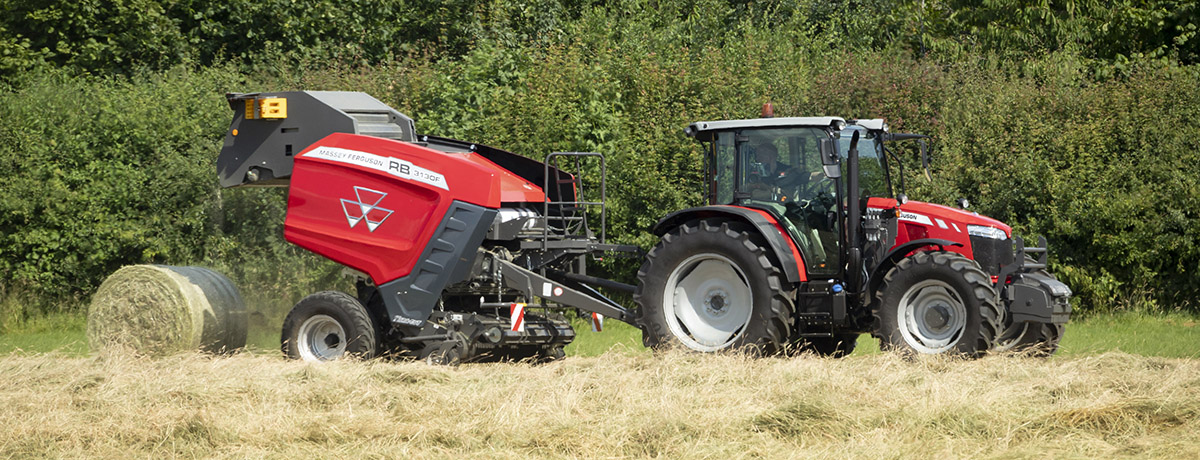

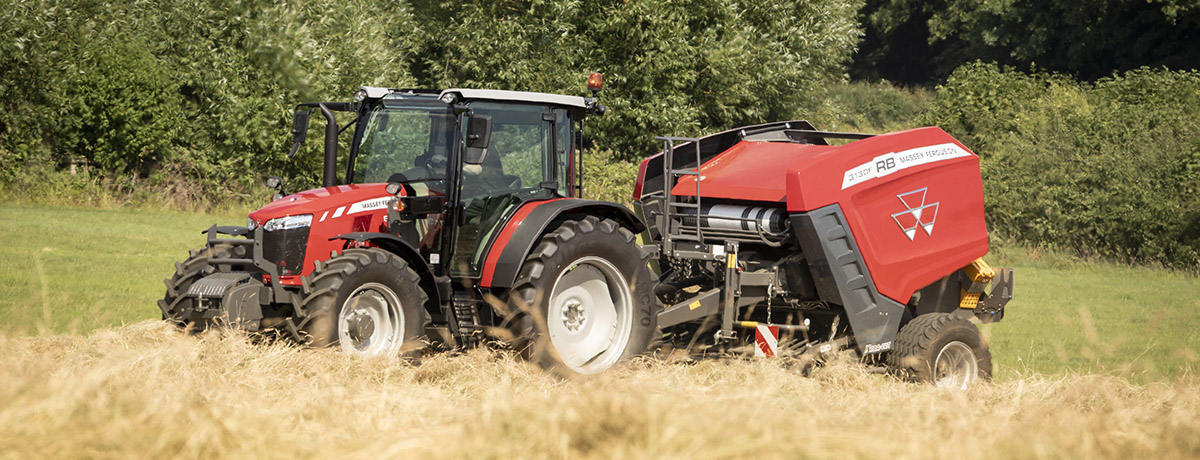

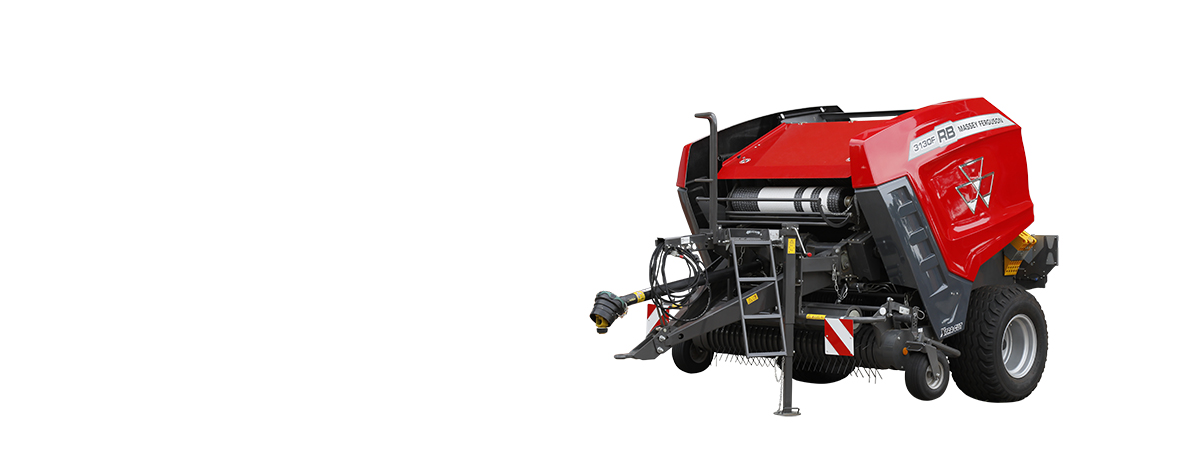

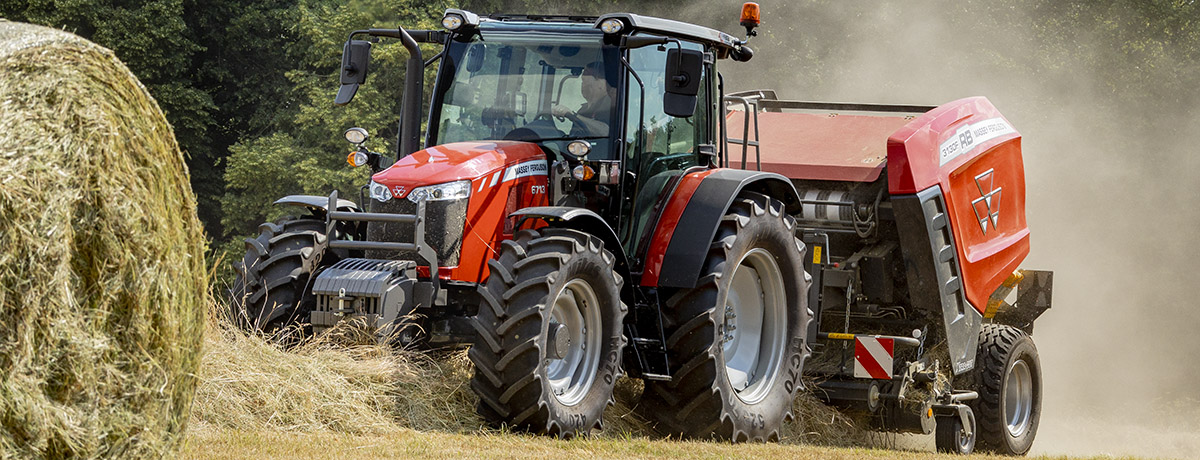

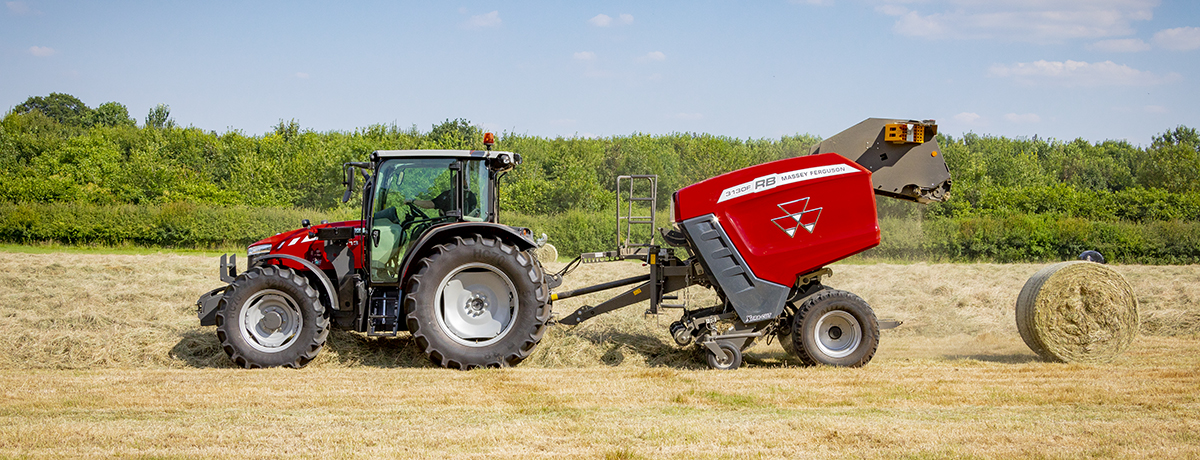

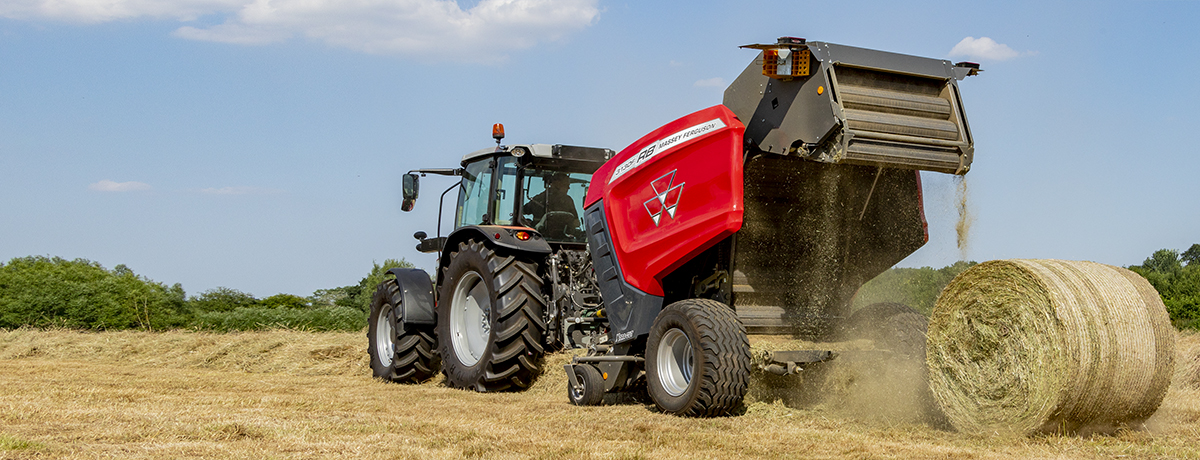

Massey Ferguson RB 3130F fixed chamber balers feature 1.5 cubic meter bale chamber with 18 Powergrip rollers and mechanical tail-gate lock ensuring consistent bale shape and density while Hydroflexcontrol, two stage protection system keeps you going faster automatically preventing up to 80% of potential blockages.

An extremely reliable and high performing range of baler models tailored to your specific needs producing high density hay, silage or straw bales, while remain simple, easy to set up and adjust.

Key features

• Pick-up width 2.00 / 2.25m

• Recommended tractor 70 HP

• Bale Diameter 1.25m Bale chamber width 1.23m

• Mechanical chamber Locking Varionet net Wrapping

Models

Higher operating speeds are possible with the Massey Ferguson cam-less pick-up design.

With fewer moving parts, the cam-less pick-up is quieter, simpler and more reliable. Low maintenance and less adjustments save time and increase productivity.

The pick-up system has five tine bars with each one being spaced only 64mm apart, providing higher capacity and a smoother even feed at high speed.

On the Massey Ferguson round balers, the pick-up is positioned very closely to the rotor, therefore improving crop flow and reducing the risk of blockage.

Designed for optimum performance, Massey Ferguson Xtracut can be equipped with 13, 17 or 25 knives. Cutter units are fitted with the longest knives on the market, making sure that no material will pass through uncut.

Xtracut 17 and 25 feature two sets of hydraulically operated knife banks with separate control from the cab depending on customer requirements.

The operator can select:

• A single knife bank
• Both knife banks
• Disengagement of all knives

To maximise efficiency in the field and minimise downtime from crop blockages, the MF Round balers are fitted with the unique Hydroflexcontrol protection system which works in two stages:

Stage 1. Automatic mechanical floor cushioning to clear minor blockages

Stage 2. Hydraulically controlled floor lowering to clear major blockages

The first stage of Hydroflexcontrol allows movement of the front part of the feed chamber floor and will automatically prevent up to 80% of potential blockages and will keep you going without unnecessary downtime.

Should a major blockage occur, stage two of hydroflexcontrol is activated by the operator, and is cleared by lowering the rear of the feed table floor hydraulically from the cab, allowing for material to easily pass through, therefore minimizing downtime.

The bale chamber is made up of 18 Powergrip rollers which ensure an effective grasp and quicker bale rotation for higher density and improved bale shape.

Rollers with 10 ribs are made from a seamless solid tube. They are the industry benchmark for durability and performance, known for their proven design and capability to withstand the harshest environments.

The tried and tested Varionet net wrapping system features a special net tensioning and spreading device that is capable of dealing with various widths and types of net allowing for fast wrapping of bales from edge to edge or over the edge.

The optional Variotwin twine system offers simple and economical bale tying. The unique Variable Speed Control allows for additional twine revolutions on the bale edges, securing bale ends and increasing overall tying speed, which is particularly beneficial when baling light crops.
