Kverneland 9580 C – 9584 C - 9590 C Hydro

Return to all products

Model Kverneland 9580 C – 9584 C - 9590 C Hydro

KV 9590C Hydro 013

Heavy Duty Centre Swath Rakes

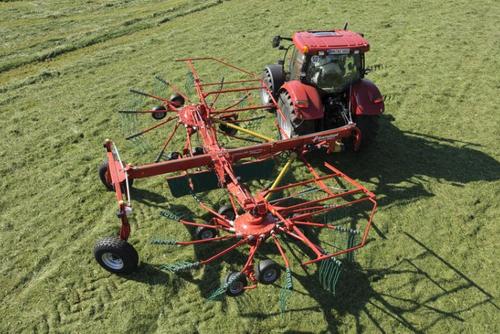

The Kverneland Taarup 9580 C, 9584 C and 9590 C Hydro are heavy duty two-rotor rakes with working widths up to 8.0, 8.4 and 9.0m respectively. They are designed for the toughest conditions and feature a high performance oil-bath gearbox and a strong carrier frame. The hydraulically adjustable working and swath width and ability to make sharp turns of up to 80° are important features of these rakes.

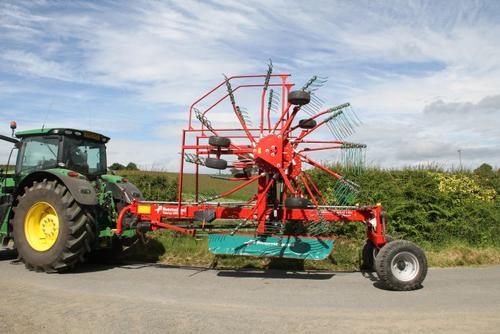

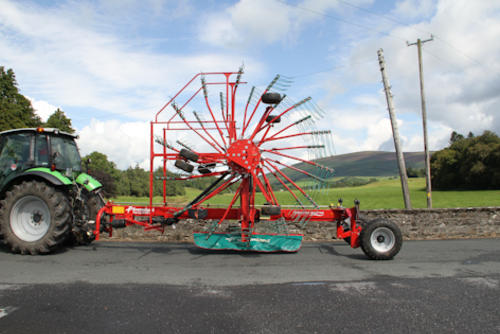

Due to the Hydro axle Kverneland Taarup 9590 C Hydro has a transport height of less than 4.0m, even without detaching the tine arms.

The Kerneland 9580 C with newly designed wheel axles provide a transport width below 4m, even with tine arms mounted.

The Advantages:

  • Working widths of 8.0, 8.4 and 9.0m.
  • ProLine oilbath gearbox.
  • TerraLink Quattro for perfect ground followings.
  • Hydraulically adjustable working width.
  • Active wheel steering with 80° turning angle for easy manoeuvrability.

Technical Specifications:

  Working Width Tine Arms Weight
9580 C 7.00 - 8.00m 2x12 2065kg
9584 C 7.60 - 8.40m 2x12 1950kg
9590 C Hydro 8.00 - 9.00m 2x14 2310kg
